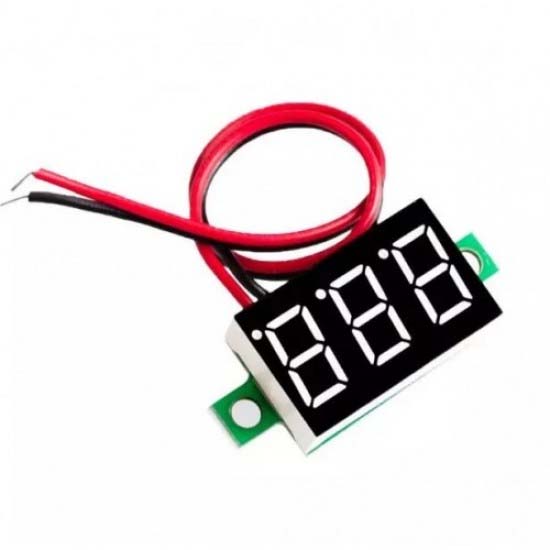

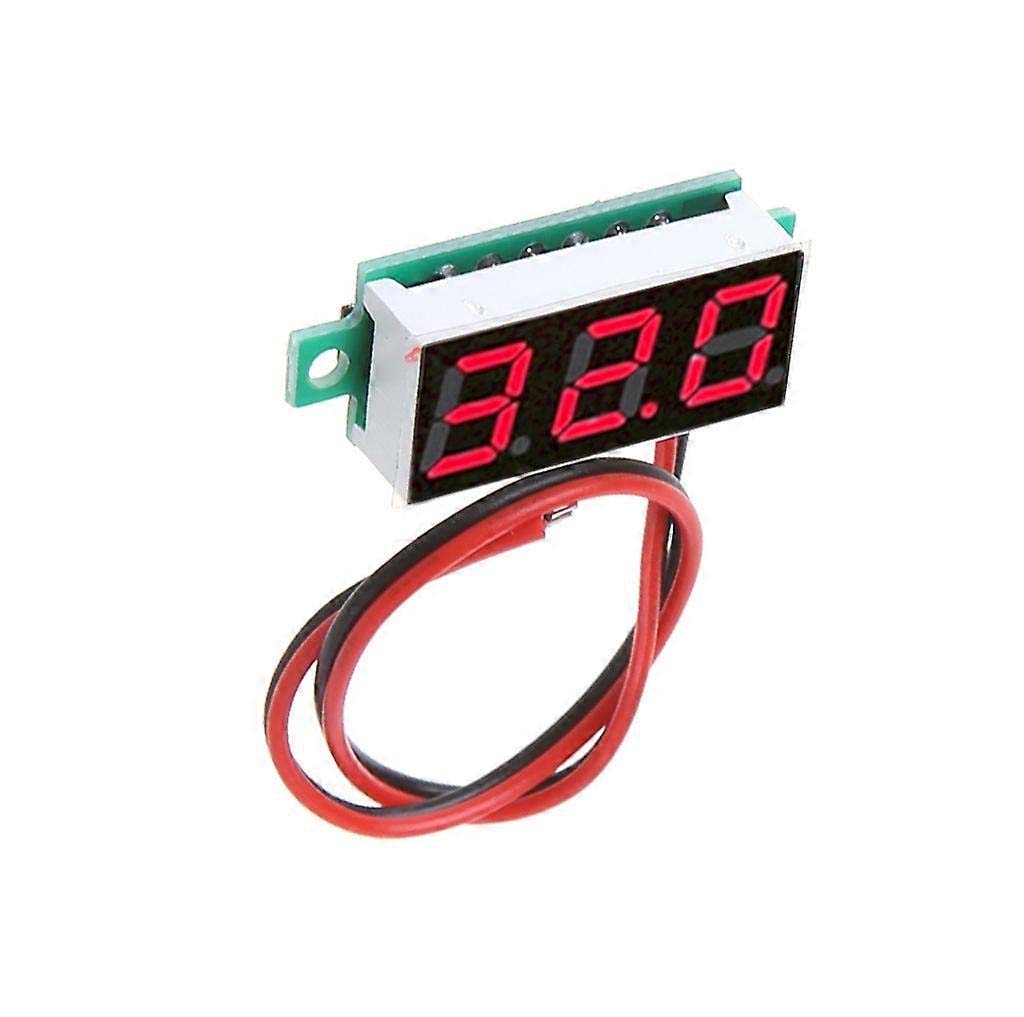

0.36 Inch Mini Voltmeter 2-Wire RED LED Display DC 2.5-30V Battery Voltage Panel Monitor

35%

OFF

0.36 Inch Mini Voltmeter 2-Wire RED LED Display DC 2.5-30V Battery Voltage Panel Monitor

~~৳110~~ ৳72

0.00/5 See Reviews

SKU : MK0284

Brand : N/A

- +

Stock : Available

Contact WhatsApp

Delivery Information

Home delivery available all over Bangladesh

Standard Delivery

• Inside Dhaka 24 Hours guaranteed delivery.
• Outside Dhaka 48 hours guaranteed delivery after order confirmation

Regular Delivery Charge

• Inside Dhaka 60Tk
• Outsite Dhaka 120Tk

Cash on Delivery Available

Advance Payment Means Faster Delivery

Scan with mobile

Download app to enjoy exclusive offers and discounts!

Sold by

MakersBD Gadget & Electronics

Chat Now

Specification
Description
Reviews (0)

Specification

Measuring range: two-wire for DC 2.5~30V
Power supply range: no separate power supply, the measured voltage 50KΩ
Working current: <30mA
Refresh rate: about 100mS/time

Display Specifications:

three 0.28 LED digital tubes (red, blue, green, yellow and white 5 colors optional)
Lead length: 15cm
Display color: red, blue, green, yellow
Dimensions: 30 x 11.5 x 9 mm
Opening size: hole distance: 26mm hole diameter: 2.2mm
Working temperature: -10 ~ +65 °C
Working humidity: 10 ~ 80%
Working pressure: 80 ~ 106kPa

Description

1. The wiring of this voltmeter is simple. The red is connected to the positive, the black is connected to the negative, and the reverse connection is protected.

2. Conventionally do not need an external working power supply, you can work directly with the measured voltage, measuring the voltage range of the second line 2.5-30V.

3. Wide voltage operation, red minimum measurement voltage 2.5V, the maximum safe pressure can reach 40V, more than 40V may be damaged.

4. When measuring voltage below 10V, two digits are displayed after the decimal point; when measuring voltage above 10V, one digit is displayed after the decimal point.
