Specification

• Resolution: 128X64
• Super wide viewing angle: more than 160 ° (maximum viewing angle display a screen)
• Ultra-low power consumption: normal display 0.08W (far below the TFT display)
• Wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
• Industrial grade: Operating temperature range -30 degree~ 70 degree
• The ultra-small size: (length) 35.4MM * (W) 33.5MM * (thickness) 4.3MM
• Support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC
• With chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work
• Compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)
• OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)

Description

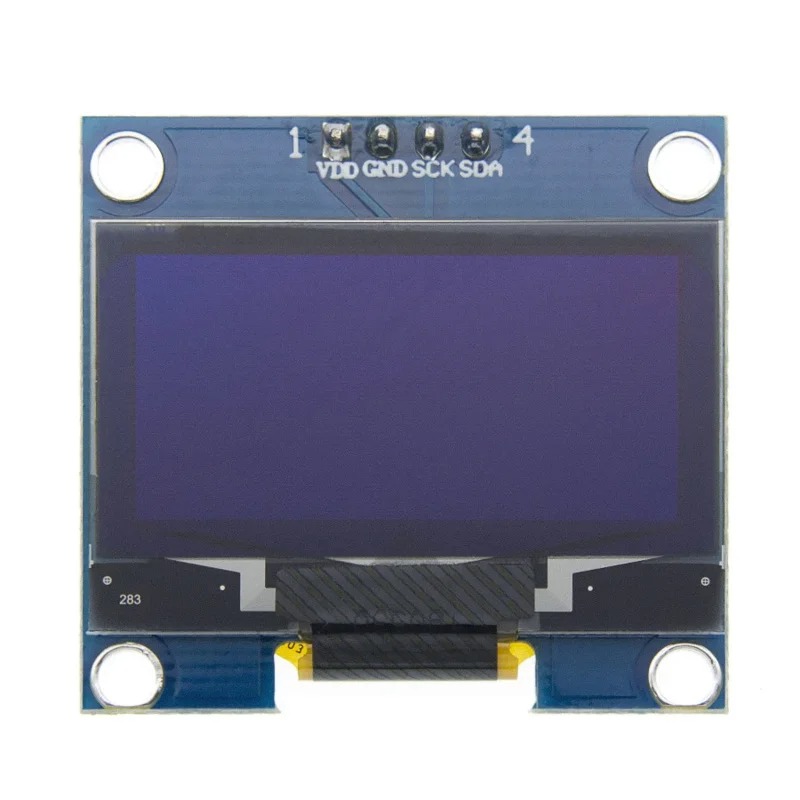

This 1.3-inch OLED display module features a 128x64 pixel resolution and is available in blue color option. It uses the SSD1306 driver chip and communicates via the I2C (IIC) interface, making it easy to connect with Arduino, ESP32, Raspberry Pi, and other microcontrollers. The module offers high contrast, wide viewing angle, and low power consumption, making it perfect for DIY electronics, IoT devices, and embedded display projects.
