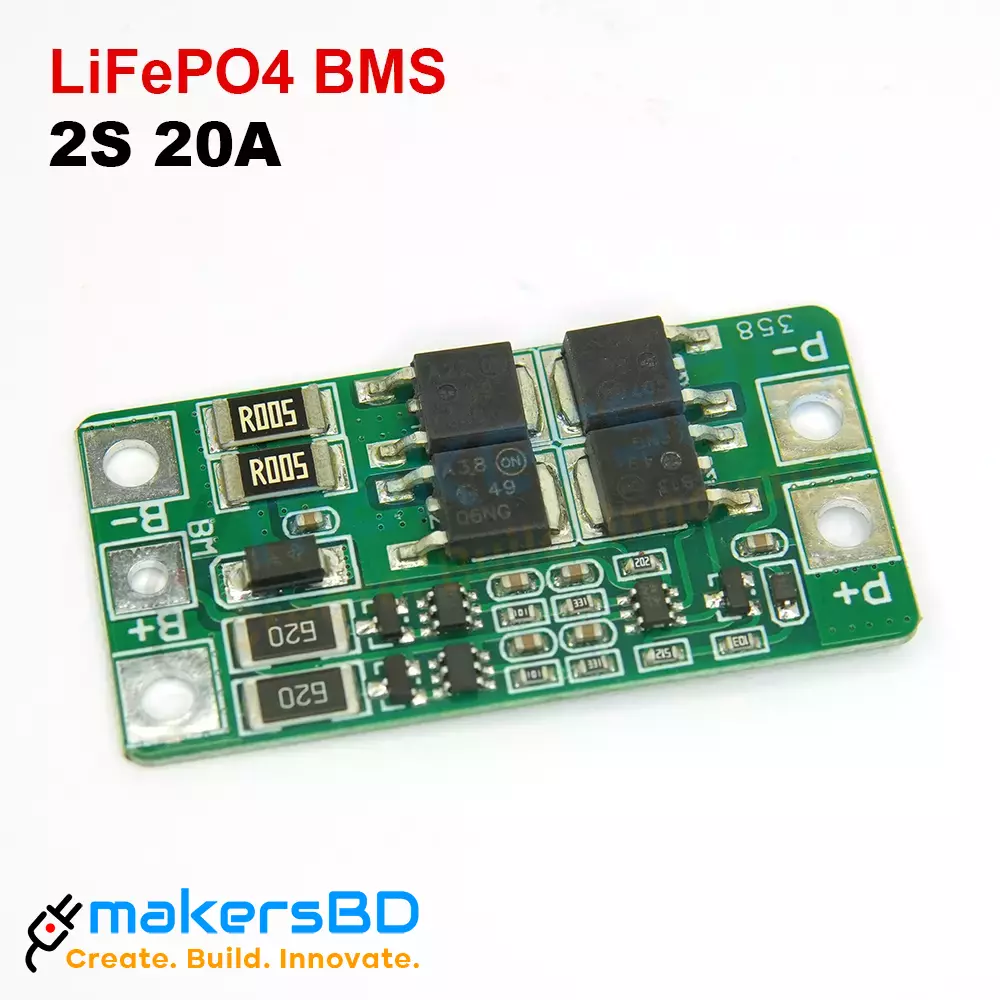

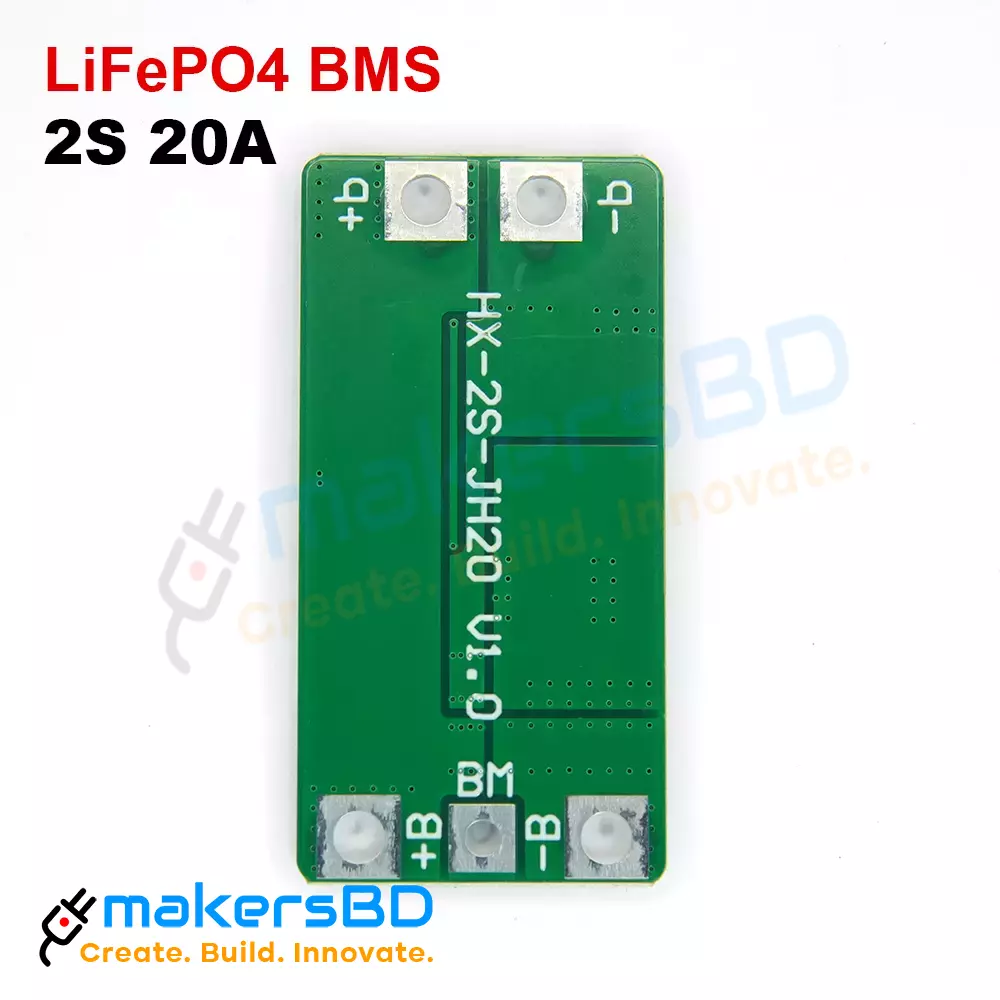

Name: LiFePO4 BMS 2S 20A 6.4V Battery Protection Board
Price: 150 BDT
Availability: InStock

17% Discount

LiFePO4 BMS 2S 20A 6.4V Battery Protection Board

~~৳ 180~~ ৳ 150

SKU : MK0455

Battery Type: LiFePO4 (Lithium Iron Phosphate)
Configuration: 2S (6.4V Nominal)
Continuous Current: 20A
Functions: Balance, overcharge, and over-discharge protection
Dimensions: 50mm × 20mm × 3mm (approx.)

- +

+8801611393333

Delivery Information

Home delivery available all over Bangladesh

Standard Delivery

• Inside Dhaka 24 Hours guaranteed delivery.
• Outside Dhaka 48 hours guaranteed delivery after order confirmation

Regular Delivery Charge

• Inside Dhaka 60Tk
• Outsite Dhaka 120Tk

Cash on Delivery Available

Advance Payment Means Faster Delivery

Scan with mobile

Download app to enjoy exclusive offers and discounts!

Sold by

MakersBD Gadget & Electronics

Chat Now

Specification
Description
Reviews (0)

Specification

Made for 2-Cell Batteries: Designed specifically for 2-cell (6.4V) lithium iron phosphate battery setups.
Keeps Cells Even (Balancing): Automatically keeps both battery cells at the same voltage while charging so they perform better and last longer.
Overcharge Protection: Stops the battery from charging too much (cuts off at $3.65V per cell) to prevent damage.
Empty Battery Protection: Prevents the battery from draining too low (cuts off at $2.0V per cell) to save it from dying permanently.
Short-Circuit & Safety Switch: Instantly cuts power if there is a short circuit or if the power draw gets dangerously high.
Handles up to 10A: Perfect for medium-power DIY projects like solar lights, small robots, and power banks.
Small & Lightweight: Compact design that easily fits into small or custom battery boxes.
Runs Cool & Efficient: Advanced design doesn't waste power and keeps heat to a minimum.

Description

LiFePO4 2S 10A Balanced BMS Battery Charging Protection Module for 6.4V Lithium Iron Phosphate Packs

The LiFePO4 2S 10A Balanced BMS Module is a critical power management solution designed for 2-cell (6.4V) lithium iron phosphate battery packs. Ideal for DIY energy storage, solar power banks, portable electronics, and lightweight e-bikes, this module delivers robust stability and safety.Equipped with advanced MOSFET control circuitry, the BMS safeguards your battery against overcharging, over-discharging, overcurrent, and short circuits. By actively balancing voltage levels across both cells, it prevents uneven wear, optimizes performance, and significantly extends your battery pack's lifespan.
