Name: ESP32 C3 Mini Development Board 32-Bit Single-Core Processor 16Pin Type-C
Brand: MakersBD
Price: 420 BDT
Availability: InStock

18% Discount

ESP32 C3 Mini Development Board 32-Bit Single-Core Processor 16Pin Type-C

~~৳ 510~~ ৳ 420

SKU : MK0346

Brand : MakersBD

- +

+8801611393333

Delivery Information

Home delivery available all over Bangladesh

Standard Delivery

• Inside Dhaka 24 Hours guaranteed delivery.
• Outside Dhaka 48 hours guaranteed delivery after order confirmation

Regular Delivery Charge

• Inside Dhaka 60Tk
• Outsite Dhaka 120Tk

Cash on Delivery Available

Advance Payment Means Faster Delivery

Scan with mobile

Download app to enjoy exclusive offers and discounts!

Sold by

MakersBD Gadget & Electronics

Chat Now

Specification
Description
Reviews (0)

Specification

Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GhHz, support Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode
Bluetooth: Bluetooth 5.0
Ultra-low power consumption: deep sleep power consumption of about 43μA
Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.
Chip model: ESP32C3FN4

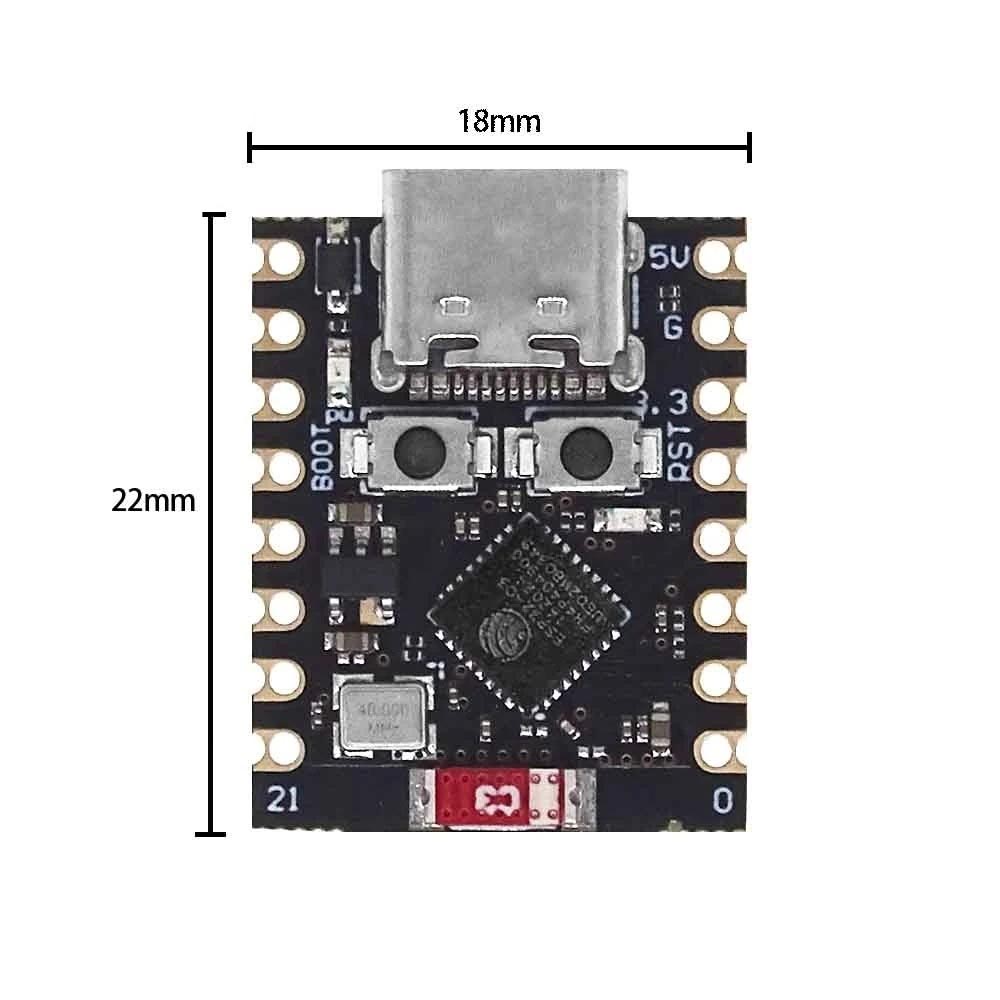

Ultra-small size: As small as the thumb (22.52x18mm) classic shape, suitable for wearables and small projects
Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC, digital signatures, and secure startup
Rich interface: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC
Single-sided components, surface mount design
Onboard LED blue light: GPIO8 pin

Description

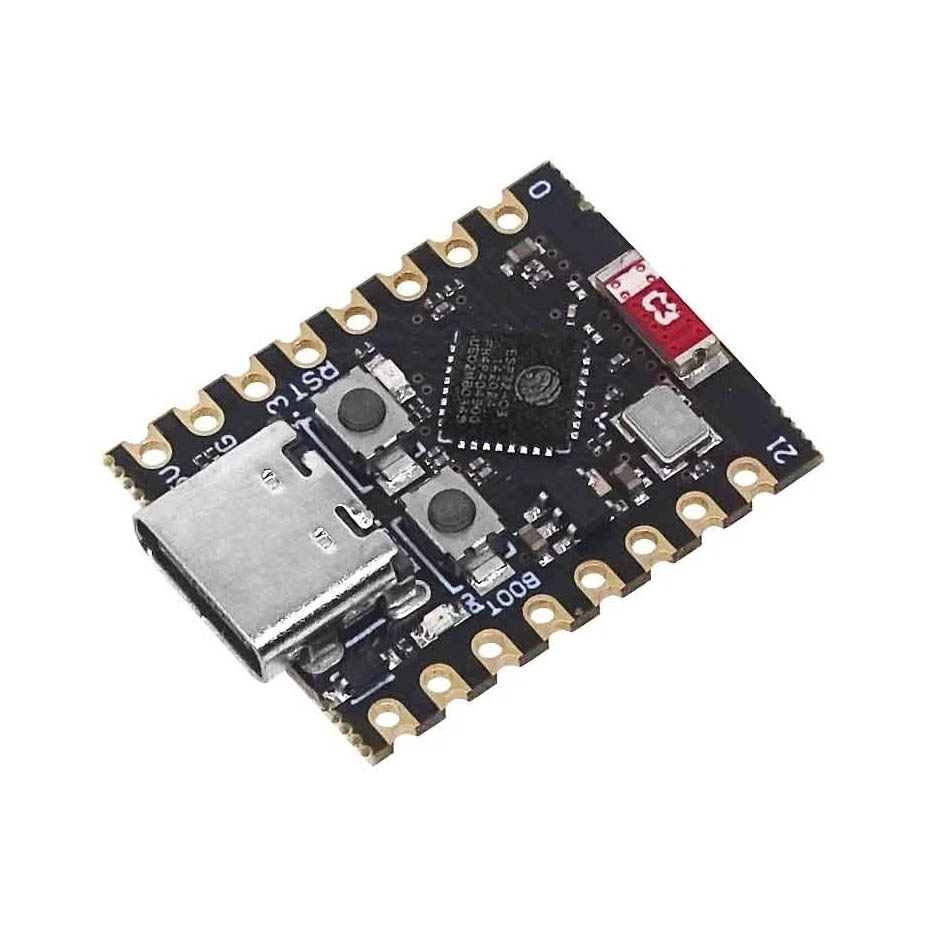

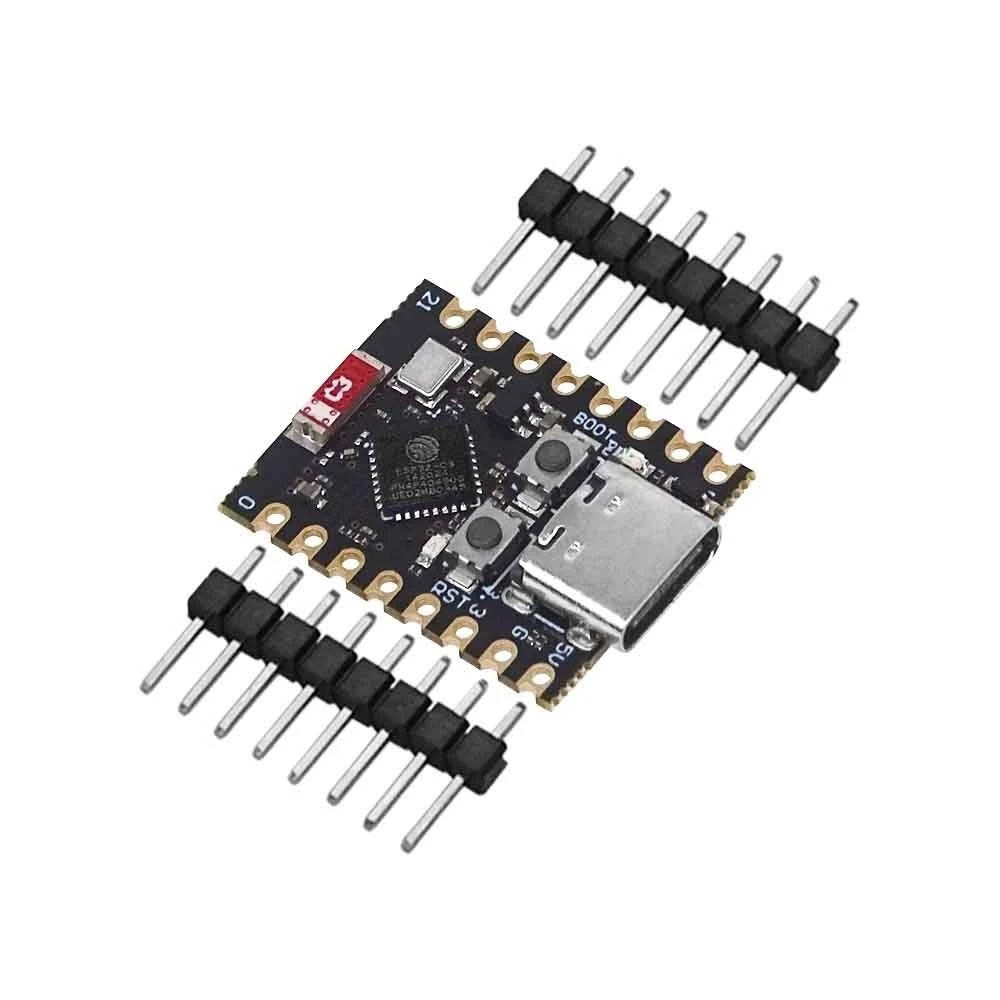

The ESP32C3SuperMini is an IoT mini development board based on the Espressif ESP32-C3 WiFi/ Bluetooth dual-mode chip. The ESP32-C3 is a 32-bit RISC-V CPU that contains the FPU (floating point unit) for 32-bit single-precision operations with powerful computing power. It has excellent RF performance and supports IEEE 802.11b /g/n WiFi and Bluetooth 5 (LE) protocols. The board comes with an external antenna to enhance signal strength for wireless applications. It also has a small and delicate form factor combined with a single-sided surface mount design. It is equipped with a wealth of interfaces, with 11 digital I/ OS that can be used as PWM pins and 4 analog I/ OS that can be used as ADC pins. It supports four serial interfaces: UART, I2C and SPI. The board also has a small reset button and a boot loader mode button.

Combined with the above features, the ESP32C3SuperMini is positioned as a high-performance, low-power, cost-effective iot mini development board for low-power iot applications and wireless wearable applications.
