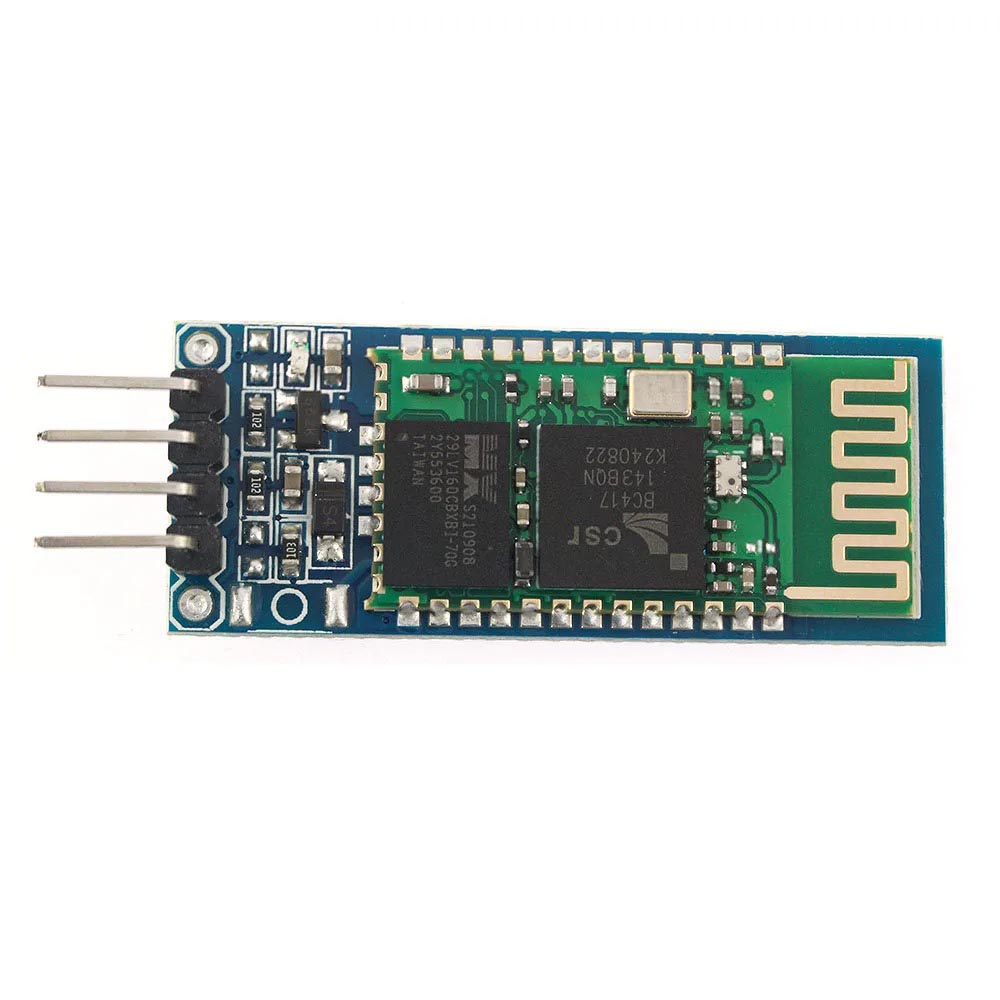

HC-06 HC06 Bluetooth Serial Pass-Through Wireless Bluetooth Communication Module

18% Discount

~~৳ 340~~ ৳ 280

SKU : MK0335

Brand :

- +

+8801611393333

Delivery Information

Home delivery available all over Bangladesh

Standard Delivery

• Inside Dhaka 24 Hours guaranteed delivery.
• Outside Dhaka 48 hours guaranteed delivery after order confirmation

Regular Delivery Charge

• Inside Dhaka 60Tk
• Outsite Dhaka 120Tk

Cash on Delivery Available

Advance Payment Means Faster Delivery

Scan with mobile

Download app to enjoy exclusive offers and discounts!

Sold by

MakersBD Gadget & Electronics

Chat Now

Specification
Description
Reviews (0)

Specification

Operating Voltage: 3.6V – 6V
Current Consumption: ~30mA (unpaired), ~10mA (paired)
Interface Voltage Level: 3.3V TTL
Communication Format: 8 data bits, 1 stop bit, no parity
Baud Rates Supported: 9600 to 460800 bps
Effective Range: Up to 10 meters
Compatibility: Arduino, Raspberry Pi, ESP8266, etc.
Module Type: Slave-only
Protocol: IEEE 802.15.1

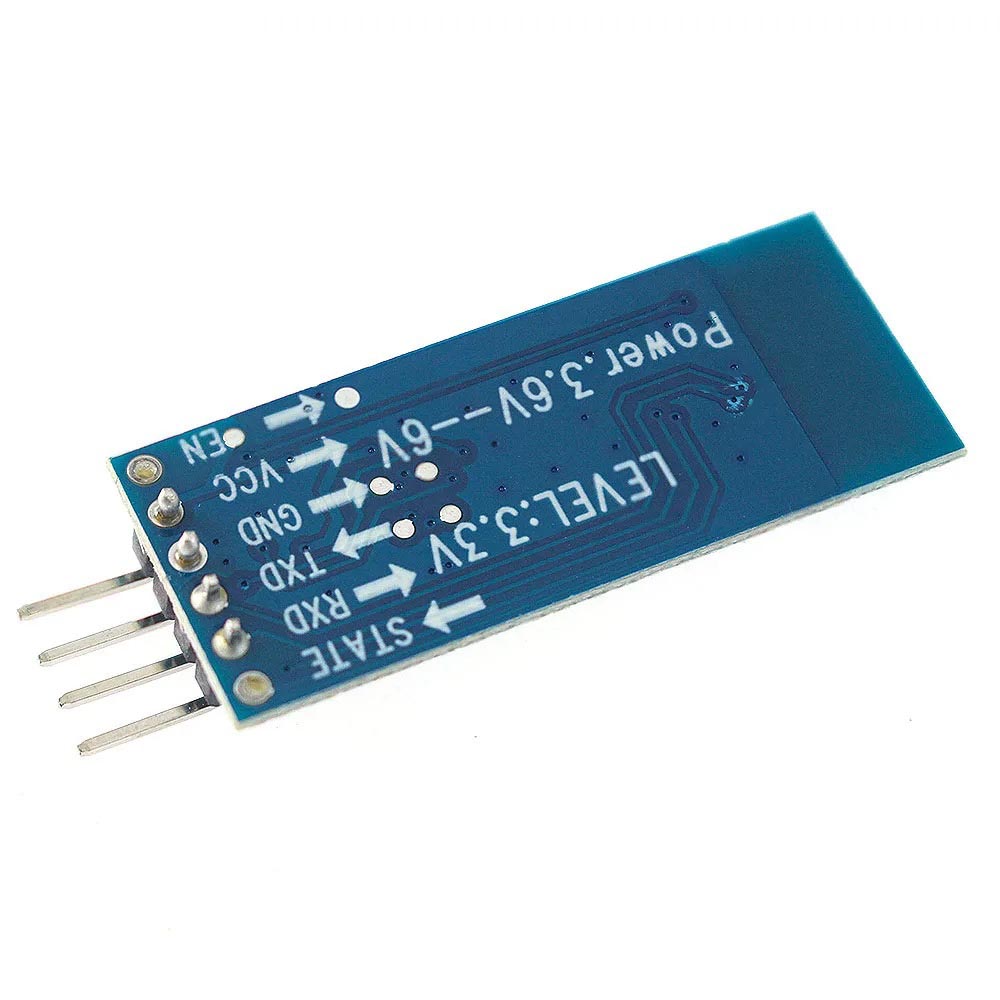

Core module uses HC-06 slave module with interface pins: VCC, GND, TXD, RXD, and LED status output pin for connection verification
LED indicator shows connection status:
Blinking: No Bluetooth connection
Solid: Connected with open port
Onboard 3.3V LDO regulator:
Input voltage: 3.6-6V
Current: ~30mA (unpaired), ~10mA (paired)
Absolute maximum input: 7V!
3.3V logic level compatible with most MCUs (51, AVR, PIC, ARM, MSP430)
Can directly connect to 5V MCUs (no MAX232 needed or allowed!)
Effective range: 10m (open area)
May work beyond 10m but connection quality not guaranteed
Functions as full-duplex serial port after pairing:
Supports only: 8 data bits, 1 stop bit, no parity
No Bluetooth protocol knowledge required
Parameters lost when powered off

Advanced Functions:

Automatically switches to transparent mode when connected
Compact size: 3.57×1.52cm
Factory SMD production with quality assurance
Clear heat-shrink tubing for:
Dust protection
Aesthetic appearance
Basic ESD protection

Slave-only module:

Pairs with Bluetooth hosts (PCs, phones, PDAs, PSPs)
Cannot pair with other slave devices

Connection Guide:

TXD (Transmit): Must connect to other device's RXD
RXD (Receive): Must connect to other device's TXD

Loopback Test:

Connect TXD to RXD on same module
Verifies basic transmit/receive functionality
First troubleshooting step when issues occur

Important Notes:

Default communication format cannot be changed
All settings must be saved via AT commands before use
Not compatible with Bluetooth LE devices
For optimal performance, maintain clean power supply within specified range

Description

The HC-06 Bluetooth Breakout Module is a compact and reliable slave-mode Bluetooth module perfect for adding wireless communication to Arduino or microcontroller-based projects. With wide voltage support and multiple baud rate options, it offers seamless pairing and stable performance up to 10 meters. Configure and control devices easily using AT commands.
