LifePO4 Phosphate Power Bank Circuit 22.5W Bidirectional PD/QC Fast Charging 3.2V Lithium Iron Phosphate
৳ 750
৳ 670
SKU : MK0423
Home delivery available all over Bangladesh
Standard Delivery
• Inside Dhaka 24 Hours guaranteed delivery.• Outside Dhaka 48 hours guaranteed delivery after order confirmation
Regular Delivery Charge
• Inside Dhaka 60Tk• Outsite Dhaka 120Tk
Cash on Delivery Available
Advance Payment Means Faster Delivery
Download app to enjoy exclusive offers and discounts!
Sold by
MakersBD Gadget & Electronics
Specification

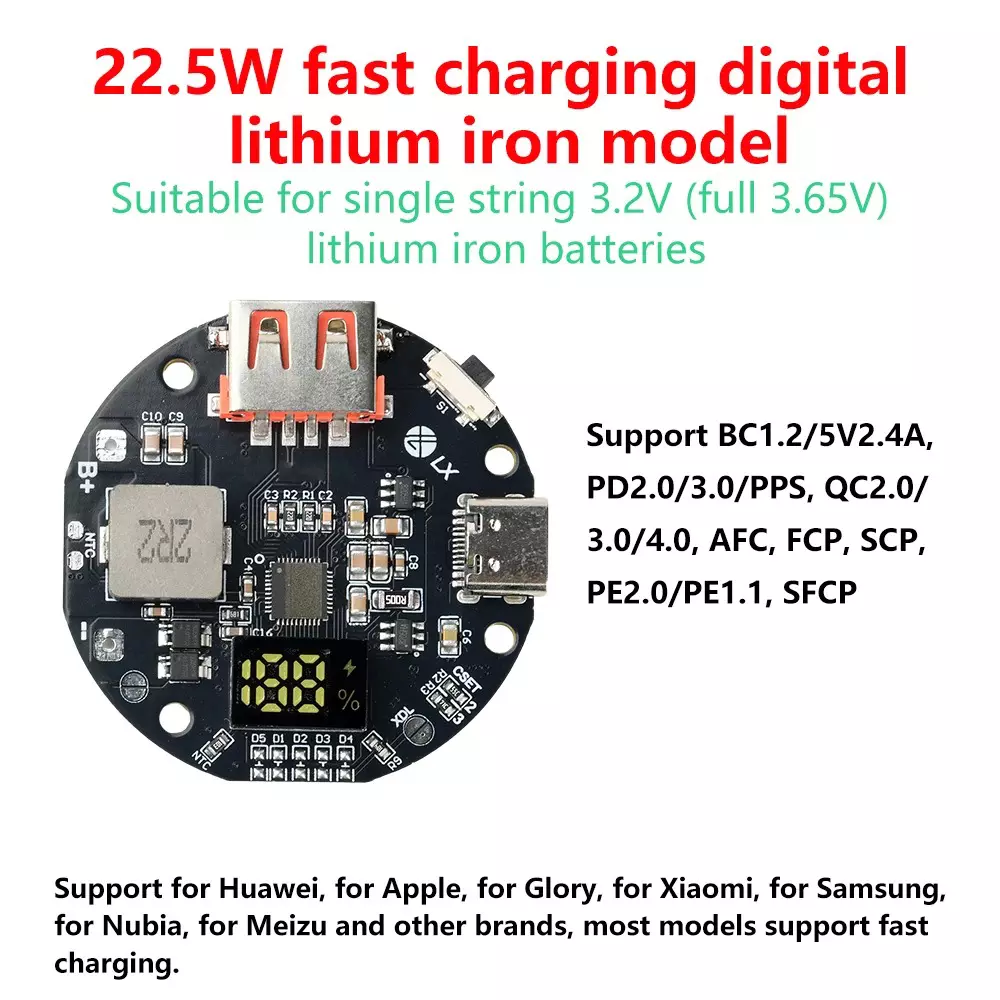

3.2V LifePO4 Lithium Iron Phosphate Power Bank Circuit 22.5W Fast Charging
- Charging current up to 5A (battery side), efficiency up to 96%
- Output power up to 22.5W, efficiency up to 95%
- Supports PPS/PD3.0/PD2.0
- Supports QC4+/QC4/QC3.0/QC2.0
- Supports AFC Supports FCP, SCP
- Supports FCP, SCP, HSCP
- Supports PE2.0/PE1.1
- Supports SFCP
- Charge the battery Support PD3.0/PD2.0, AFCFCP, SCP, PE1.1
Module input interface:
- Key: short press action, open the USB port and light load Type-C output port external discharge and power display. When double-click action, close the USB port and Type-C output port and power display; if there is an external power supply present, only the output port will be closed.
- Type-c port: support input and output USB port: high-current output interface
- B+: battery positive interface, the use of must be welded, the line must be thick, can not be too long
- B-: battery negative interface, the use of must be welded, the line must be thick, can not be too long module wiring with a multimeter to measure the module charging and discharging when the voltage of the B+ and B- contacts are the same or the difference is very small, if the difference is large, then there are wiring problems or battery aging. Problems or battery aging use
Precautions
- The motherboard received, first connected to the charging head test, look at the LED light status, to confirm that the lights can be lit before assembly
- Normal application, the battery must be welded, (wire twisting will be insufficient power supply), the battery reverse motherboard must burn. Be careful. Line as thick and short as possible.
- Batteries can only be connected in parallel (parallel number is not limited), not in series, series must burn the motherboard.
- If the battery comes with a protection board, make sure that the protection board protection current is greater than 7A (fast-charging version requires more than 10A) or remove the protection board.
- The board will be burned in reverse. Burned IC will have traces. 8. Access to the battery to determine access to the 3.2V lithium batteries, not other batteries. Ensure that the battery is not connected in series, otherwise the battery terminal access voltage is higher than 4.5V may burn the board.
- Board power indicator built-in coulomb meter, just connected to the battery display will not be allowed, the power meter to support the battery capacity self-learning function, more than a few times the complete charging process can learn the current battery capacity.
Package include
22.5W fast charging module * 1
Description
3.2V LifePO4 Lithium Iron Phosphate Power Bank Circuit 22.5W Fast Charging

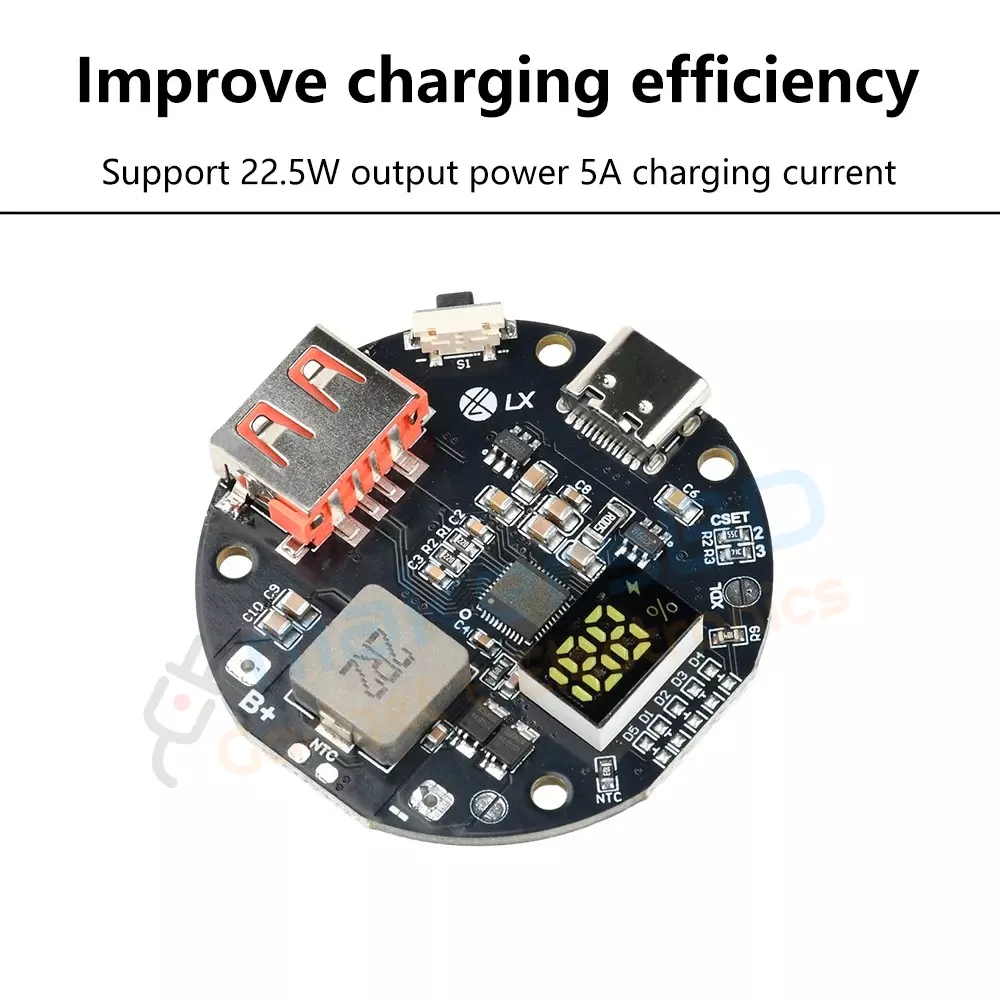

1.Support up to 22.5W output power and 5A charging current, compatible with a variety of fast charging protocols (such as PD, QC, SCP, etc.), significantly improve charging efficiency.

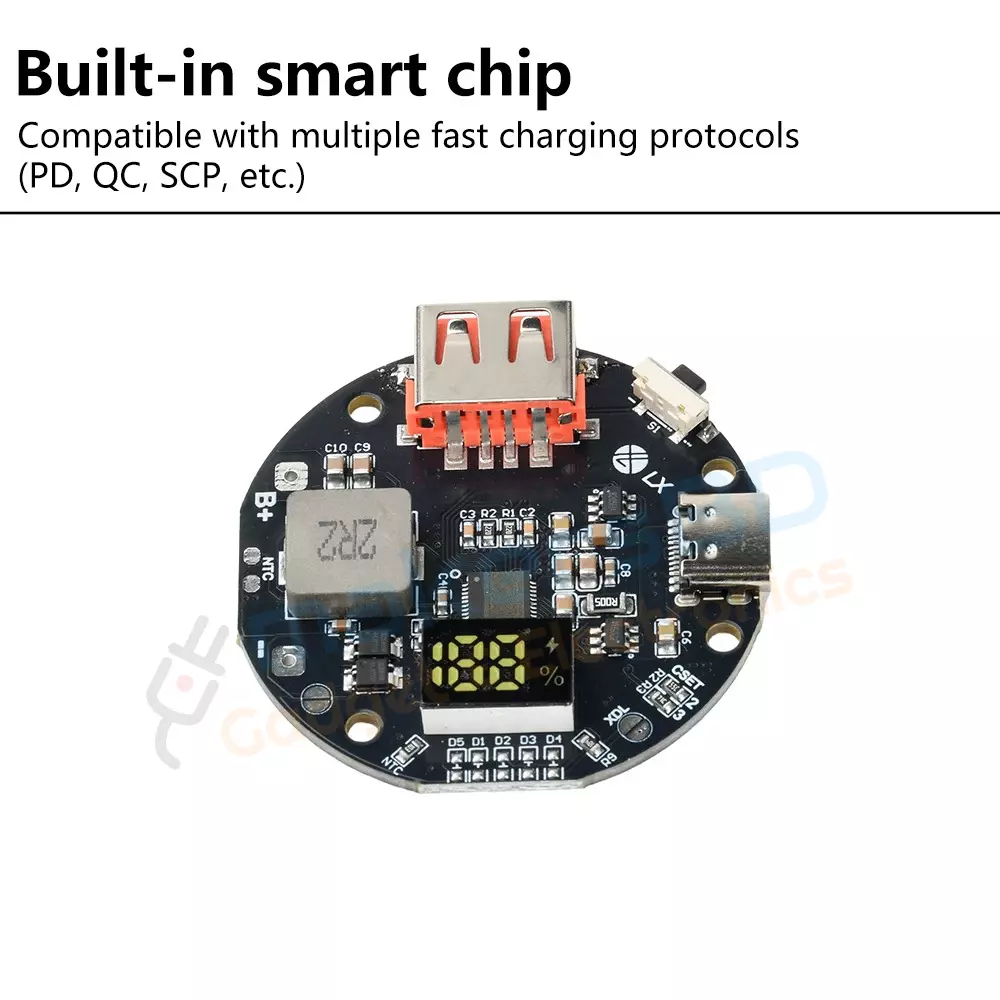

2.Built-in intelligent chip, automatically recognizes the device type and matches the optimal charging protocol, adapting to the fast charging needs of mainstream brands of cell phones and devices.
3. Adopting high-quality electronic components, the charging efficiency is as high as 95%-96%, which ensures stable operation for a long time and prolongs the service life of the product.
4. With multiple safety protection mechanisms, including over-current, short-circuit, over-voltage, charging timeout protection, etc., to fully protect the use of safety.
5. Modular and compact design, convenient for DIY users to flexibly integrate into various mobile power shells, easy to carry, strong applicability.
6. Equipped with LED lights and digital tube power display, support battery capacity self-learning function, provide more intuitive and accurate power indication.
