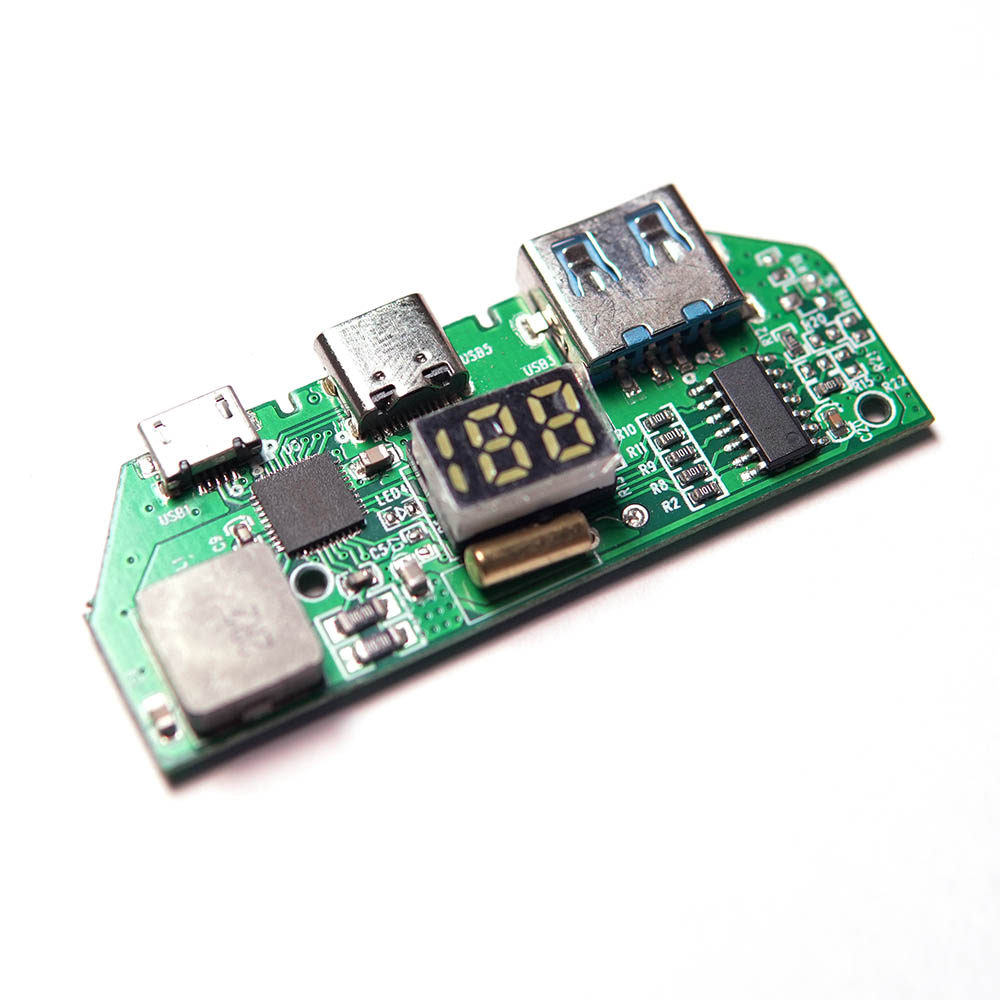

22.5W PD QC SW6106 Fast Charging Power Bank Circuit with Display
৳ 280
৳ 220
SKU : MK0347
Home delivery available all over Bangladesh
Standard Delivery
• Inside Dhaka 24 Hours guaranteed delivery.• Outside Dhaka 48 hours guaranteed delivery after order confirmation
Regular Delivery Charge
• Inside Dhaka 60Tk• Outsite Dhaka 120Tk
Cash on Delivery Available
Advance Payment Means Faster Delivery
Download app to enjoy exclusive offers and discounts!
Sold by
MakersBD Gadget & Electronics
Specification
- Combines charging management, boost converter, discharge control, and protocol detection in one chip.
- Input voltage: 4.2V-5V (typical 5V).
- Output voltage: 3.0V – 12.0V adjustable.
- Supports bidirectional power flow (charge & discharge via same port).
- PD3.0 / PD2.0
- QC4.0 / QC3.0 / QC2.0
- SCP (Huawei SuperCharge Protocol)
- FCP, AFC, SFCP, PE2.0, Apple 2.4A, Samsung, DCP, BC1.2
- Can handle USB-A, USB-C, and Micro-USB simultaneously with automatic recognition and handshake.
- Up to 22.5 W fast charging (supports 5V/9V/12V output modes).
- Supports 1-cell Li-ion/Li-polymer battery (3.7V nominal).
- Integrated battery protection, charging control, and balancing.
- Intelligent charge/discharge switching.
- High boost conversion efficiency (up to 95%), reducing heat and extending runtime.
- Built-in over-voltage, over-current, short-circuit, over-temperature, and reverse connection protection.
- Compatible with LED or LCD display drivers for battery percentage and status indication.
- Fast-charging power banks
- Multi-port USB chargers
- Portable energy packs
- Smart power modules
Description
The 22.5W Fast Charging Power Bank Circuit features 3 ports with bi-directional QC4.0 and PD3.0 support, powered by the SW6206 chip. It operates from a 3.7V lithium battery input, offering efficient fast charging and power delivery for multiple devices. Ideal for DIY power banks, multi-port chargers, and portable energy projects.
